The 0.1 mm Heat Tax: How an Invisible Film Steals Cooling Capacity
Jun 11, 2026
Think of pressing an ice pack against a warm metal surface. Clean contact pulls heat away quickly. Add a thin film between the two, and the ice pack is still cold, but the heat has a slower path into it.
In a liquid-cooled AI rack, the same physics becomes a business problem. A thin layer of biological growth, mineral scale, corrosion product, or residue on the cold-plate wall can quietly consume the margin that keeps GPUs boosting, jobs predictable, and tokens flowing.
The coolant keeps flowing. The pump keeps working. The rack may stay online. But the heat has to pay a toll before it reaches the liquid, and the customer feels that toll as less usable GPU output.
That toll is the 0.1 mm heat tax.
A 0.1 mm low-conductivity film is about the thickness of a sheet of paper. In a high-performance cold plate, that can plausibly create a heat-transfer penalty around 40%, and sometimes more, depending on the loop.
Why Clean Cold Plates Matter
Direct-to-chip cooling works because it collapses distance. The coolant is brought close to the silicon, the cold plate spreads heat, microchannels create surface area, and flow carries the load away.
That whole chain depends on one quiet assumption: the wall is clean.
Biofilm breaks that assumption. So can mineral scale, corrosion debris, and polymer residue. The material does not need to look dramatic. If it sits at the wall and conducts heat poorly, it turns the clean thermal path into a slow lane.
The Math, Without the Drama
The physics is not exotic. It is the same thermal-resistance stack engineers already use for heat exchangers and heat-transfer surfaces.
The simple idea is this: clean metal moves heat fast. A thin wet film does not. Put that film between the GPU and the coolant, and the cooling path slows down.

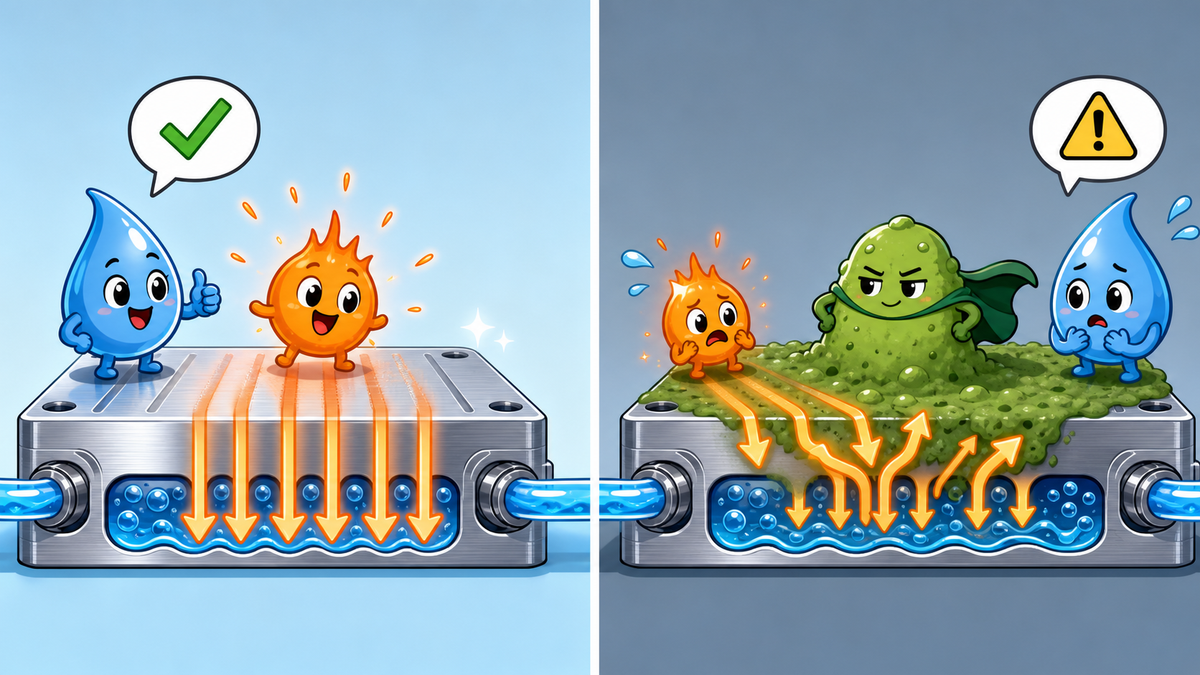

Clean path: heat moves from the GPU through the cold plate wall into the coolant.

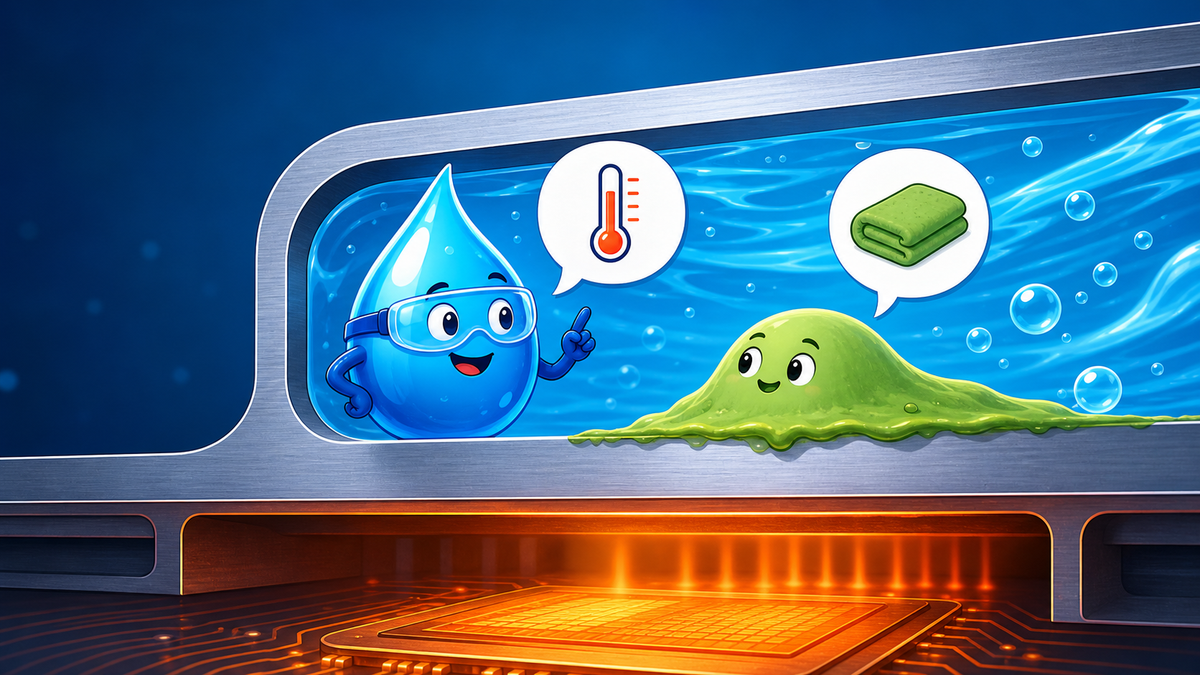

Dirty path: heat must cross an extra film first, so less heat leaves the GPU at the same coolant conditions.
L: deposit thickness.
k: deposit thermal conductivity.
For a simple sensitivity check, imagine a very efficient clean cold plate. Add a water-rich wall film. This is not a field prediction; it is a way to show why small deposits can matter before they are visible.
Sensitivity calculation
interactive model
See how a thin film blocks cooling
50 micron case: this model shows how a thin wall film can start stealing cooling margin. It is not a site guarantee because the actual penalty depends on channel design, flow speed, coolant condition, GPU load, controls, and thermal headroom.
50 µm film: cooling through the wall can fall by about 45% in this simplified model.
100 µm film: cooling through the wall can fall by about 62% in this simplified model.
This simplified model follows a standard heat-transfer idea: each extra layer adds resistance between the heat source and the coolant.
The model also assumes full surface coverage and a simple one-dimensional resistance path. Real cold plates may see partial coverage, localized deposits, flow redistribution, and geometry-specific effects.
Real impact varies by cold-plate design, flow, coolant chemistry, workload, controls, and thermal margin. The takeaway is simple: in a high-performance loop, a tiny insulating layer can become a large cooling penalty.
Why Small Deposits Can Create Big Losses
The exact penalty is not the same in every loop. It depends on cold-plate geometry, flow rate, surface material, deposit chemistry, and how much of the wall is covered.
That is why the 40% number should be treated as an engineering warning, not a universal constant. Thin biological layers and other deposits can reduce heat transfer before they look serious.
The lesson is simple: when a low-conductivity layer sits between the wall and the coolant, heat has a harder path out. The layer does not need to block flow to cost performance.
Closed data-center loops have their own risk profile. The concern is what happens when filtration, oxygen ingress, inhibitor reserve, materials compatibility, contamination control, or coolant chemistry drift away from the commissioned baseline. Industry guidance for water-cooled servers treats water quality, wetted materials, and filtration as dedicated design topics.
Why AI Racks Feel It Faster
As rack density climbs, spare margin gets thinner. A loss that might be absorbed quietly in a lower-density environment can show up as higher chip temperature, shorter boost duration, more pump effort, more fan compensation, or reduced headroom during transient workloads. Direct-to-chip research is increasingly focused on higher heat flux, hotspot-aware geometry, and concentrated AI loads.
That is why direct-to-chip cooling is both powerful and sensitive. It wins by reducing thermal resistance. So when a new resistance appears at the wall, the system feels it.
The Loop Can Look Fine Until It Does Not
This is the uncomfortable part: the loop can look healthy while the wall is changing.
The coolant sample may look clear. pH may be normal. Conductivity may not scream. The CDU may hold supply temperature. The rack may stay online.
Meanwhile, the chip sees less margin.
Signals Worth Watching
Do not wait for one perfect alarm. Watch the pattern.
Early clues that the heat tax may be arriving
Chip temperature: Higher temperature at comparable GPU load.
Approach temperature: A slow 1 to 2 °C rise over a month while load, flow, and supply temperature stay comparable.
Pump effort: More RPM or command to hold the same flow.
Delta-P: A 10% to 15% drift across a branch, filter, or cold-plate path.
Rack spread: Similar racks no longer behave similarly.
Chemistry: Normal bulk pH or conductivity while the thermal trend worsens.
GPU output: Fewer tokens generated per GPU, shorter boost windows, or tighter scheduling at the same cooling setpoints.
Those numbers are not universal alarm limits. They are practical review triggers. The right thresholds should be set against each loop's own clean baseline. Closed-loop monitoring is also moving toward estimating heat-transfer drift from operating data, which fits this baseline-and-drift mindset.
The Cost Is Margin
The heat tax is not just a temperature problem. It is an operating-margin problem, and in an AI factory it can become an output problem.
A fouled loop may need more pumping energy, more fan compensation, lower supply-temperature targets, earlier maintenance, or reduced rack utilization to deliver the same IT load. In high-density environments, that margin can be the difference between a stable deployment and recurring throttling complaints, fewer useful GPU-hours, and fewer tokens generated per GPU.
The Playbook
Baseline early: Record thermal performance, flow, pressure drop, and chemistry during commissioning.
Trend comparable moments: Compare like with like: load, supply temperature, flow, valve position, and workload profile.
Connect the signals: Temperature without pressure is incomplete. Chemistry without thermal trend is incomplete. The story is in the combination.
Investigate drift, not just alarms: Slow changes are often where fouling announces itself first.
Clean intelligently: Biofilm, mineral scale, corrosion product, and debris are different problems. The wrong intervention can move the problem downstream.
Keep the evidence: Continuous records help operations, warranty discussions, and customer escalations.
The Line Worth Remembering
A microscopic deposit does not have to block a pipe to hurt a liquid cooling loop. It only has to add resistance at the surface where heat is supposed to move.
That is why fluid health is not a side issue in direct-to-chip cooling. It is part of the thermal architecture.
A 0.1 mm film is small to the eye. To a high-performance cold plate, it can be a tax on every watt the loop was built to remove and every GPU cycle the customer expected to use.
